Panels engineered to specification
An exclusive range of aluminium composite panels, plus full glass supply and installation, for the most demanding applications.
How the panel is built
We take pride in offering innovative, quality panels featuring an anti toxic polyethylene core coated with aluminium skin from bottom to top. With a thickness ranging from 2mm to 6mm, these panels are durable, thin and lightweight.
- Multiple core options and a wide selection of finishes
- Colour uniformity and uniform flatness across every sheet
- Easy to work with on site, and light enough to handle quickly
Two aluminium alloy sheets bonded to an anti toxic polyethylene core. Total thickness from 2mm to 6mm, depending on specification.
What the coating gives you
Depending on the paint selection and the product, the aluminium undergoes a series of special coating processes. Those processes allow for the following.
UV Resistance
Colour holds against constant sun without fading out.
Anti Moisture, Abrasion & Salt
Built for coastal air, rain and everyday wear.
Unlimited Colour Palettes
Virtually any colour, matched to your specification.
Self Cleaning
Rain carries dirt off the surface instead of holding it.
Anti Scratch & Anti Graffiti
Marks and tags lift off without damaging the finish.
Technical data
Panel data for specification and tender documents. Contact us for a full technical data sheet on any product in the range.
| Property | Specification |
|---|---|
| Total thickness | 2mm, 3mm, 4mm, 5mm and 6mm. 4mm is the standard architectural panel (±0.2mm). |
| Core | Anti toxic polyethylene. Multiple core options available. |
| Skin | 0.5mm aluminium alloy sheet (3003 or 5005), top and bottom |
| Standard sheet size | 1220mm × 4880mm (4ft × 16ft). Cut to size on request. |
| Coating type | PVDF on the face, ≥26 microns dry film (ISO 2360). Polyester service coat on the reverse. |
| Fire rating | Tested to ASTM E84 for surface burning characteristics; smoke developed under 45. Certificate available on request |
| Finish options | 36 stock finishes across solid, metallic, mirror, satin, crinkle, wood and stone, plus custom colour matching |
| Panel weight | 5.81 kg/m² (4mm) |
| Sound insulation | 29 dB |
| Minimum bending radius | ≥300mm |
| Thermal expansion | 3.0 × 10⁻⁵ /°C |
| Warranty | 15 year factory warranty |

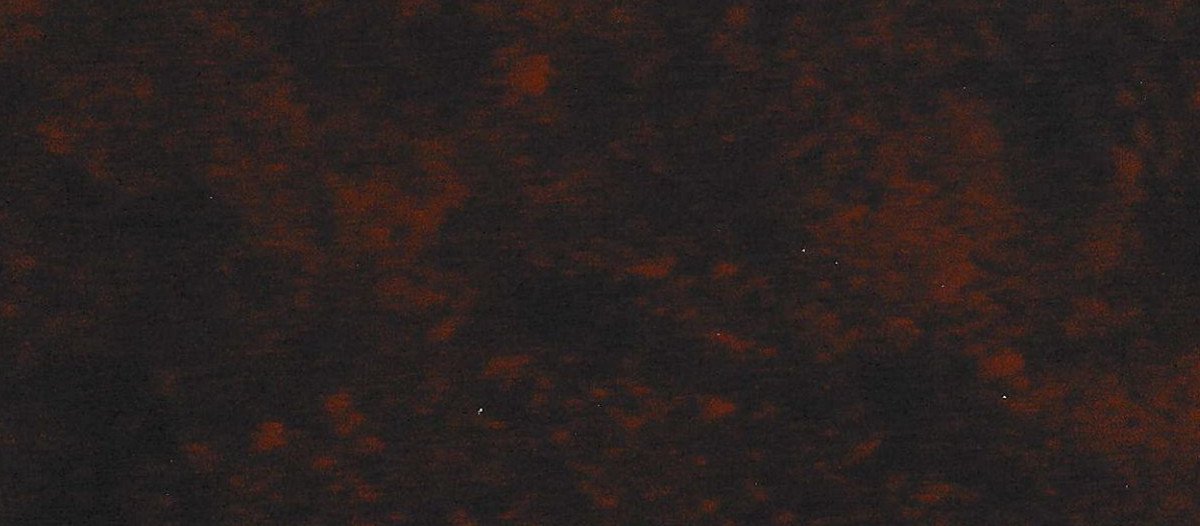

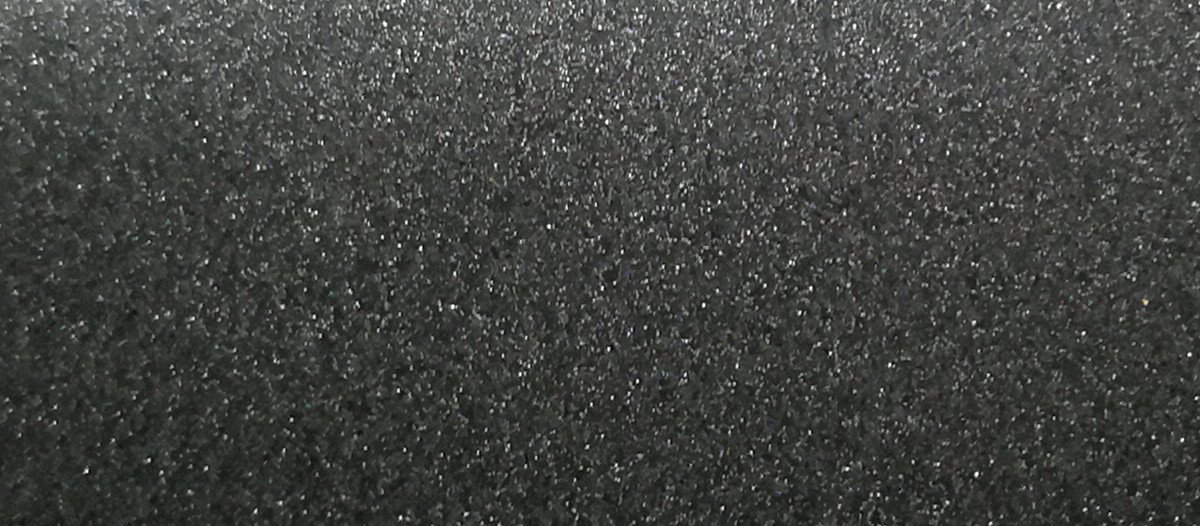

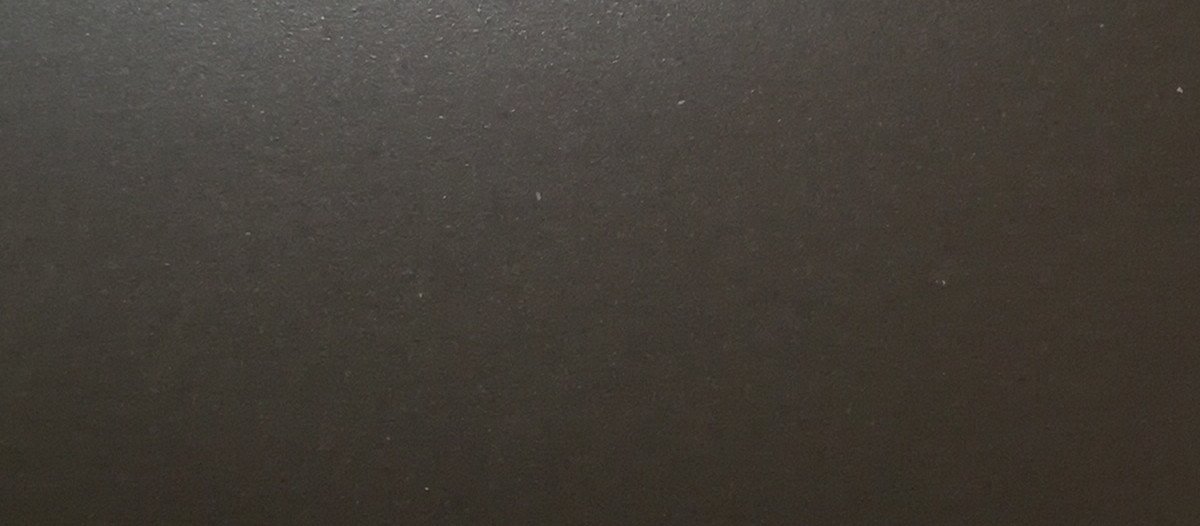

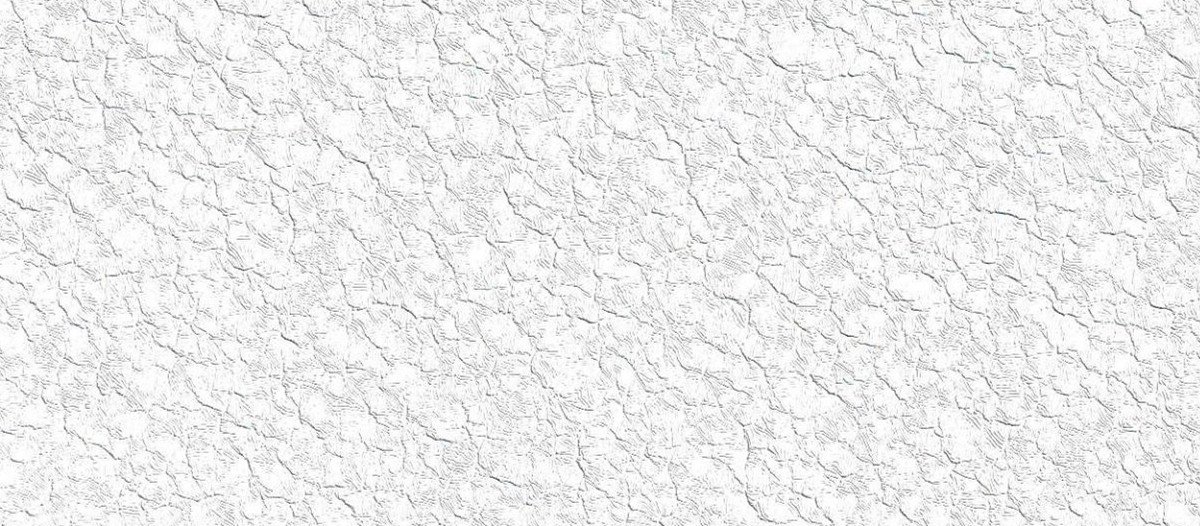

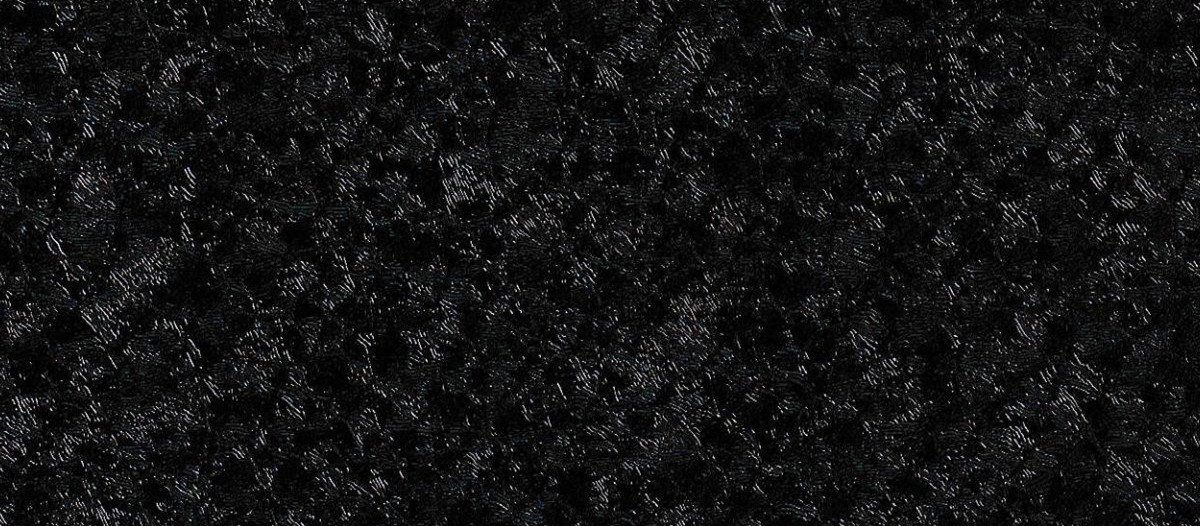

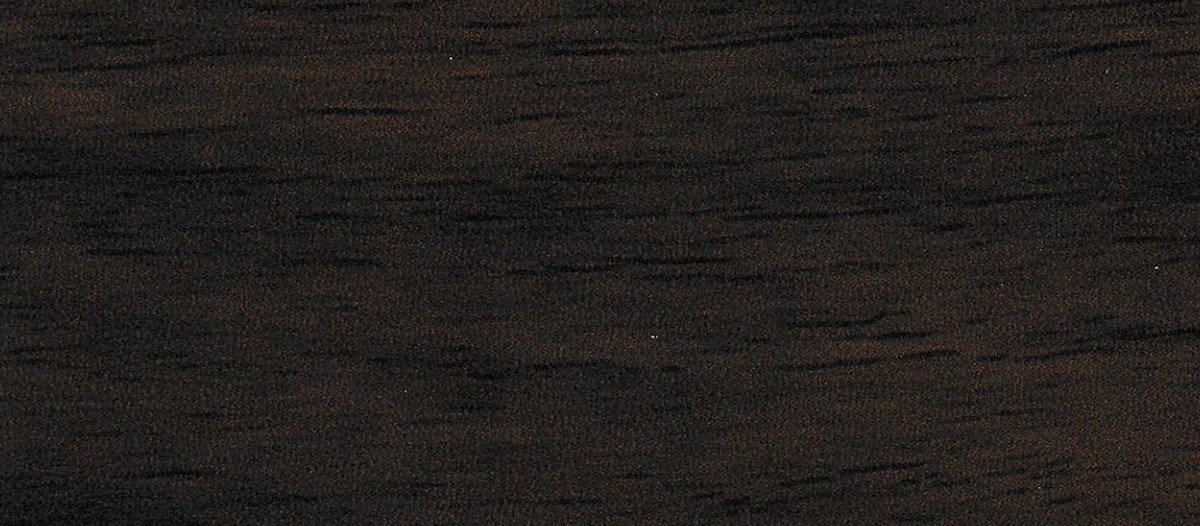

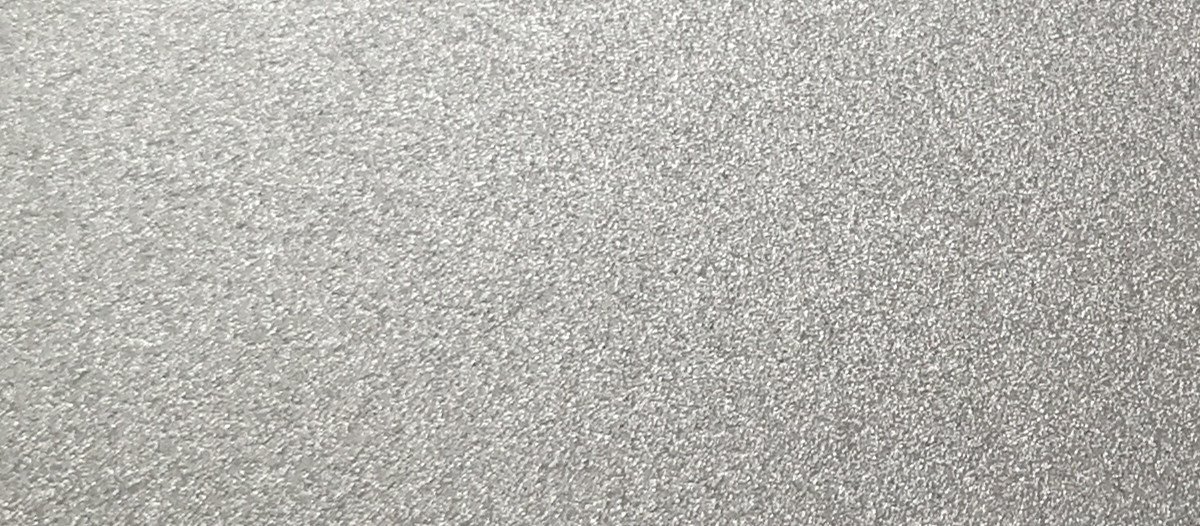

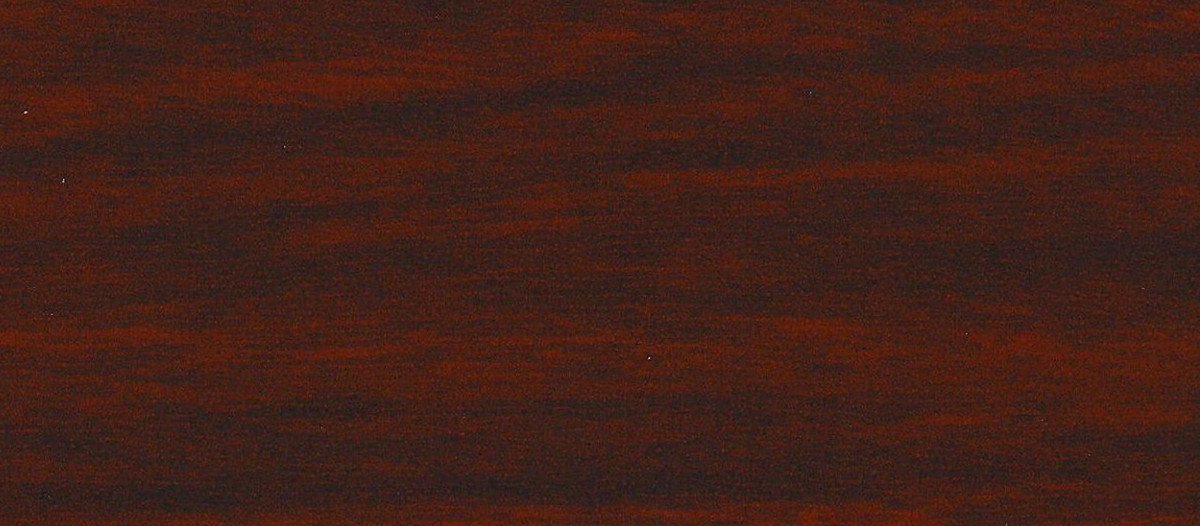

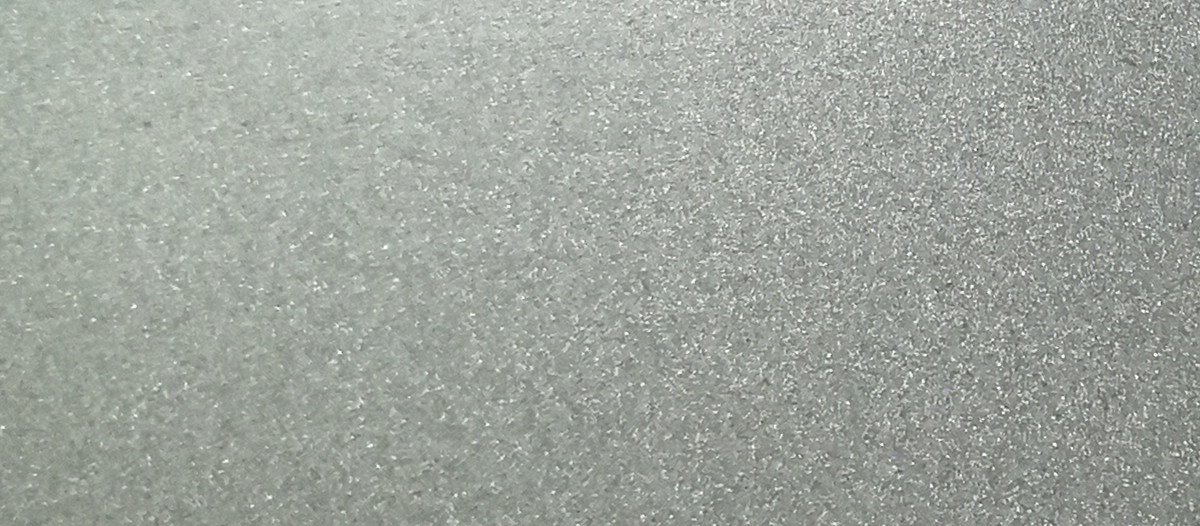

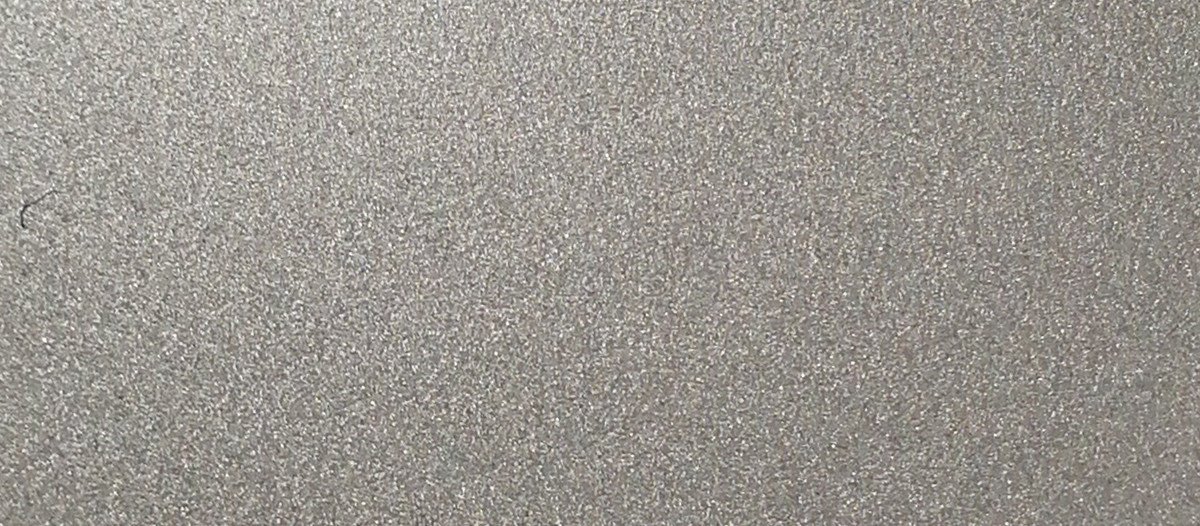

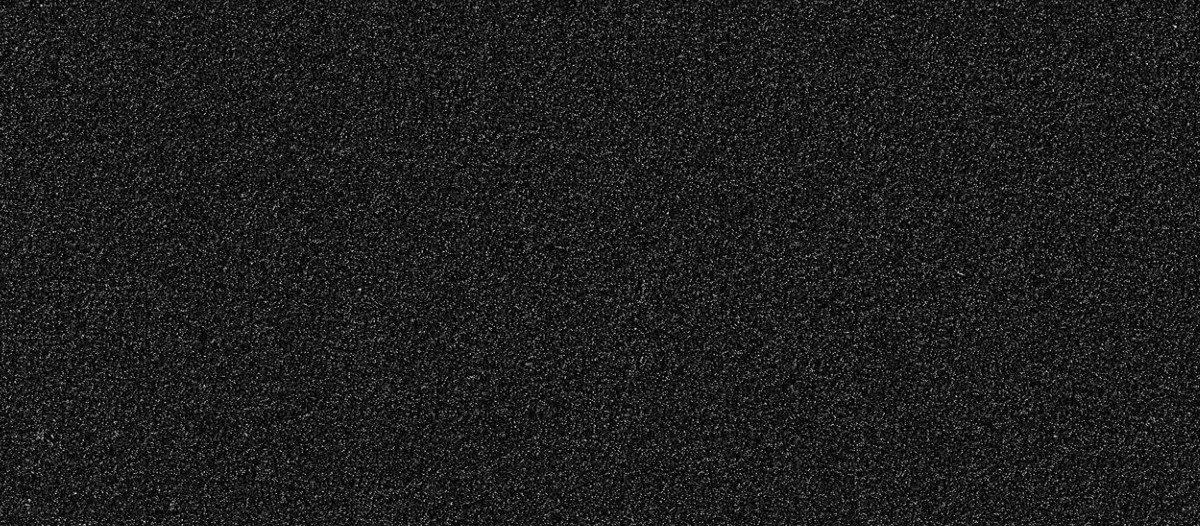

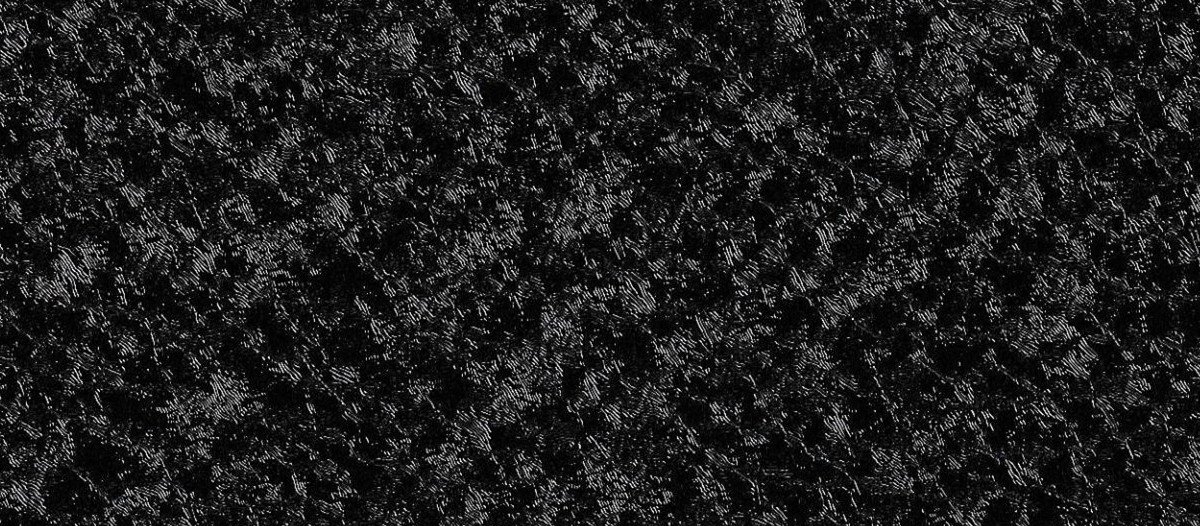

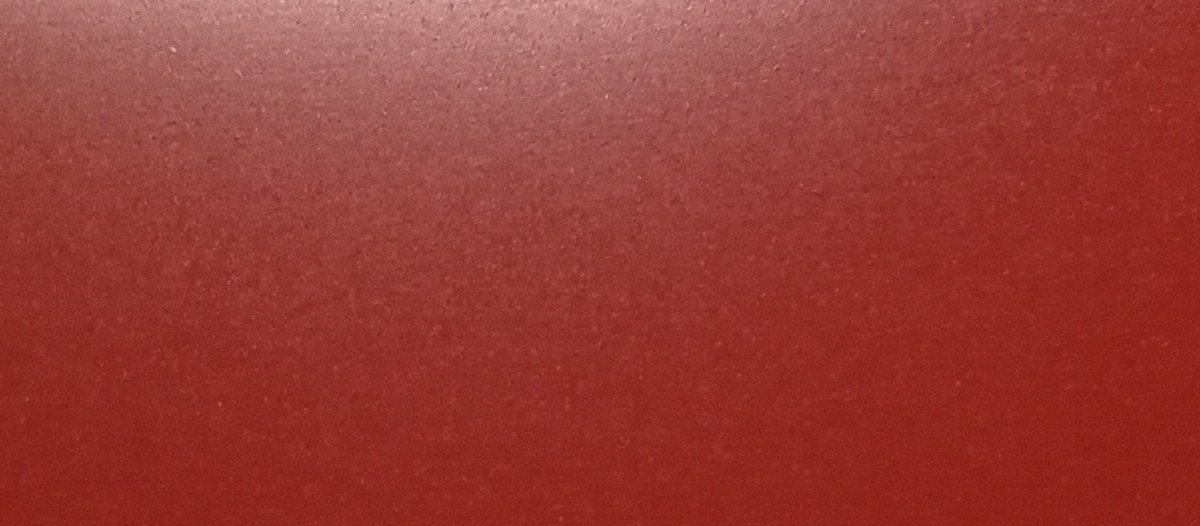

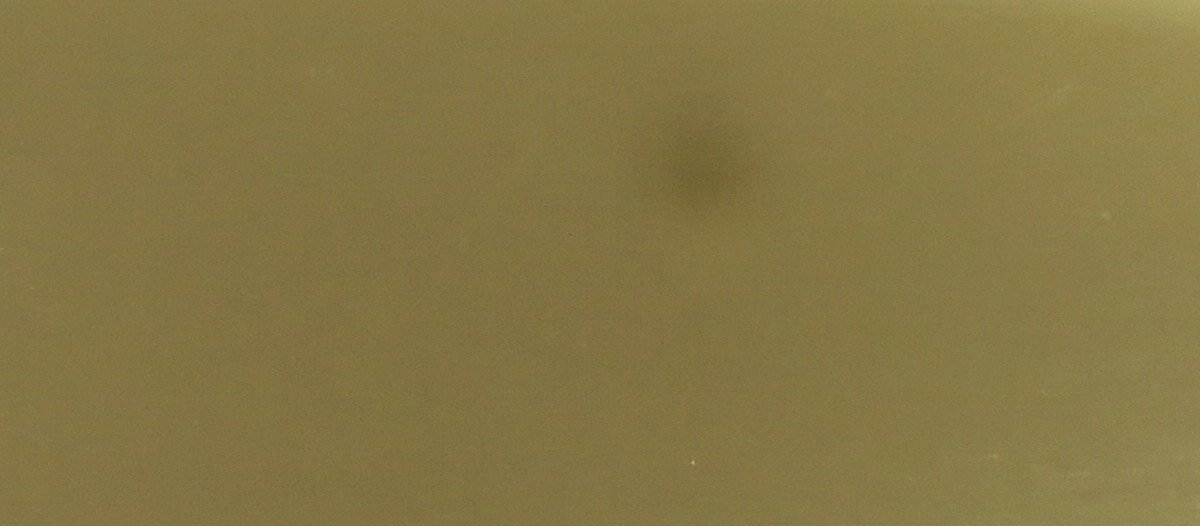

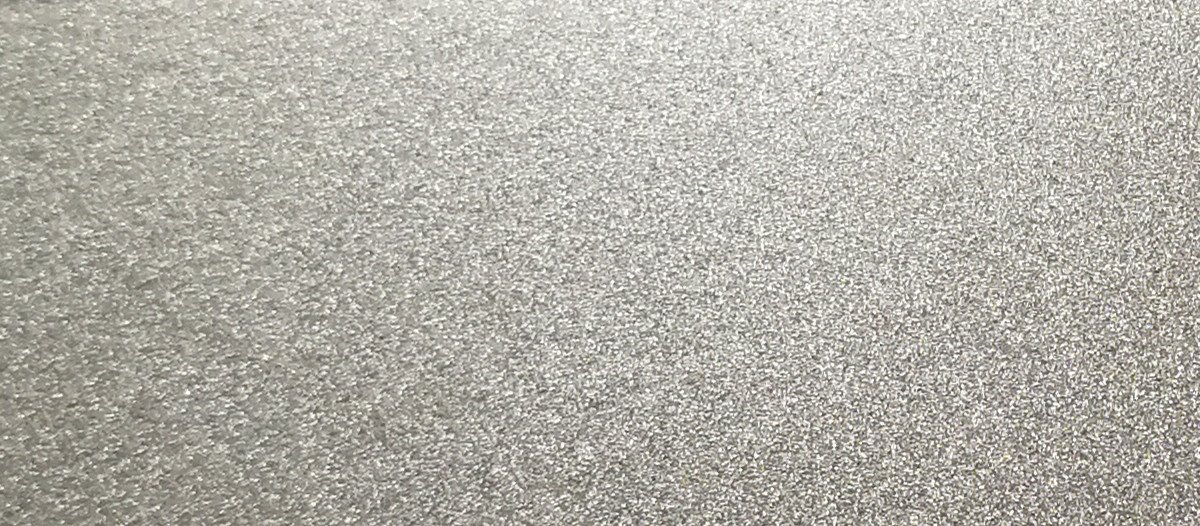

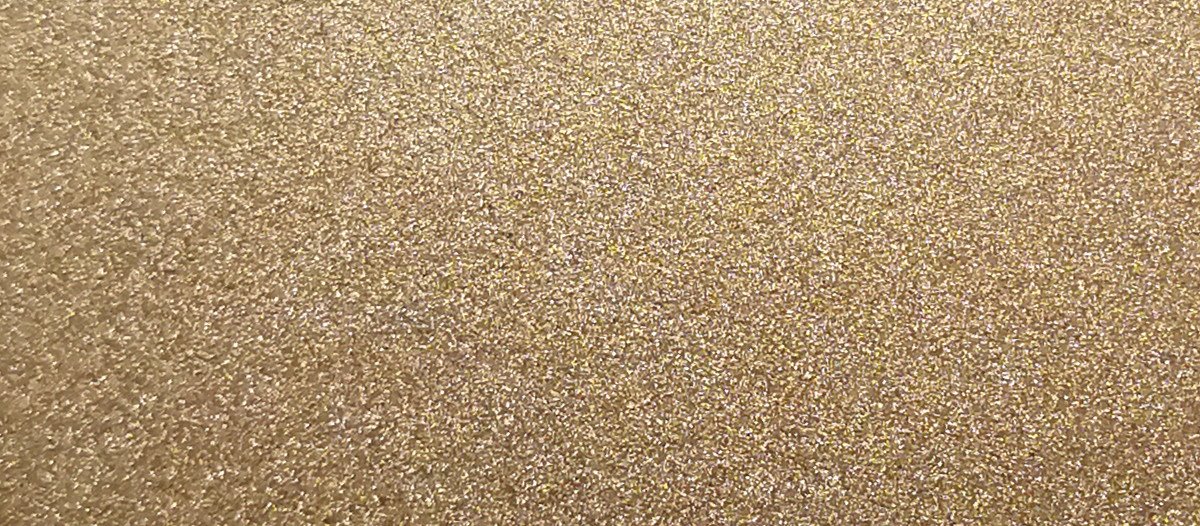

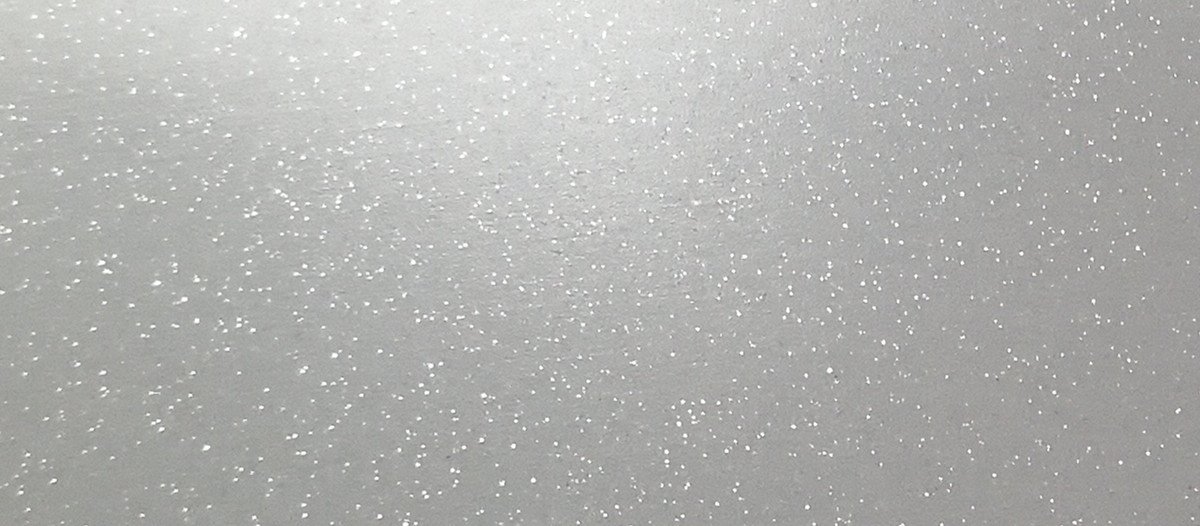

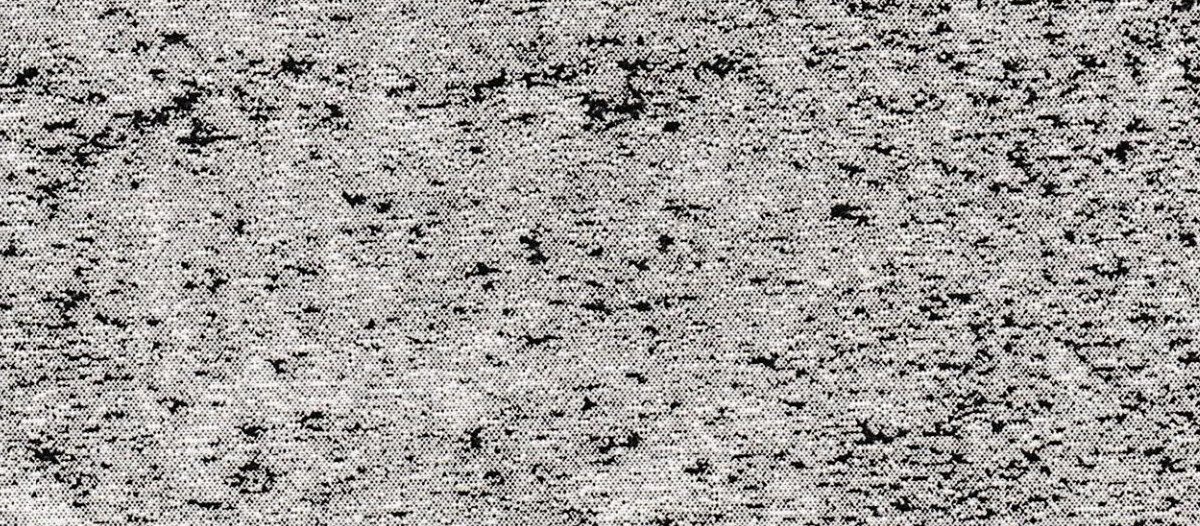

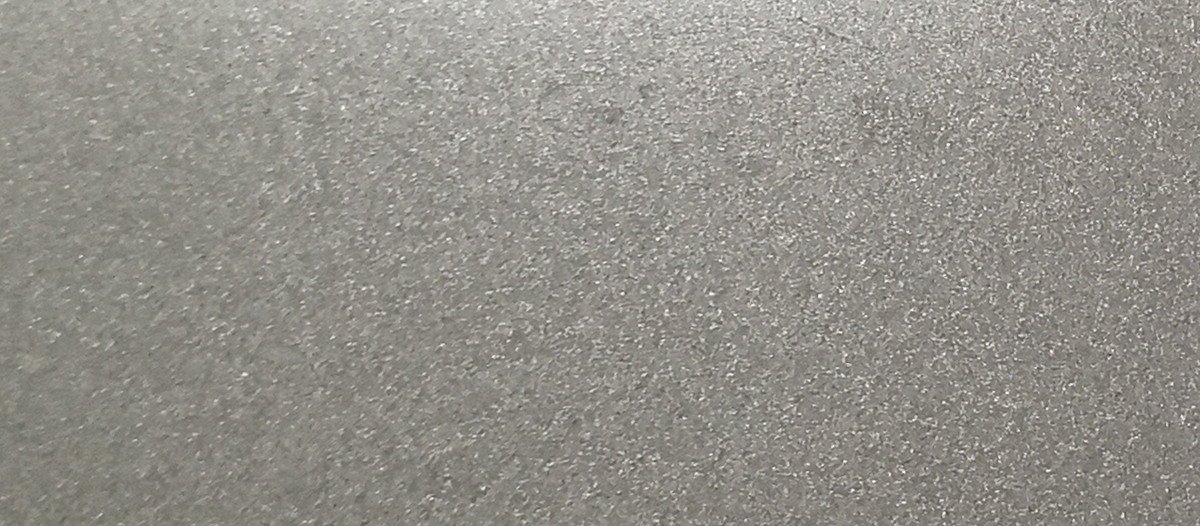

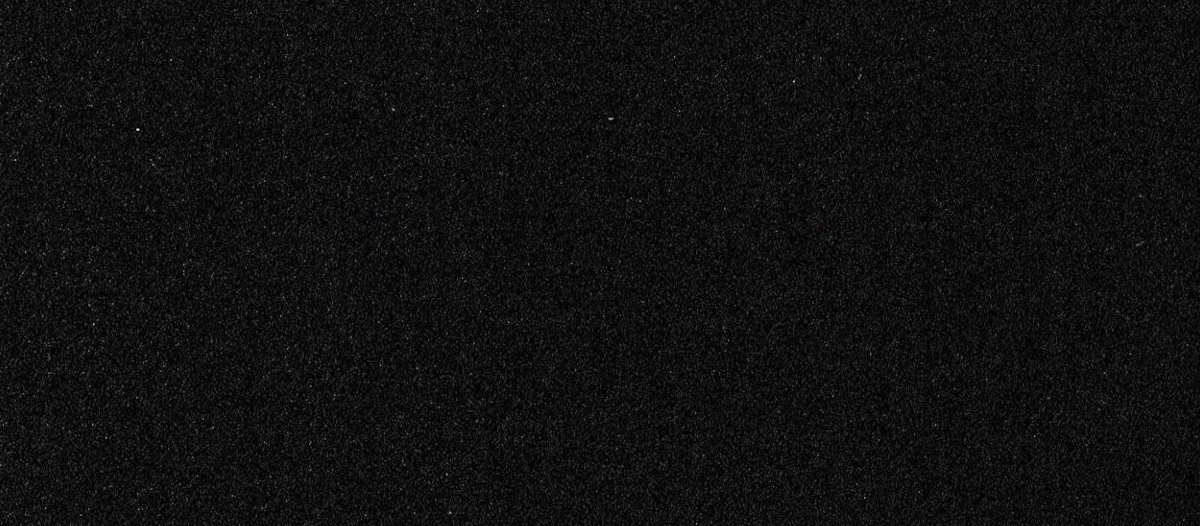

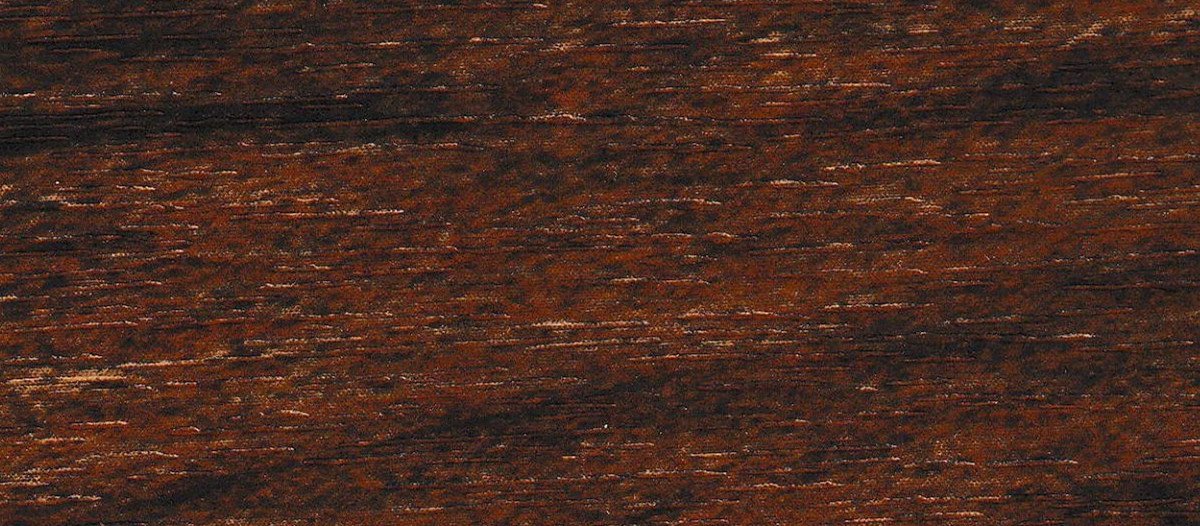

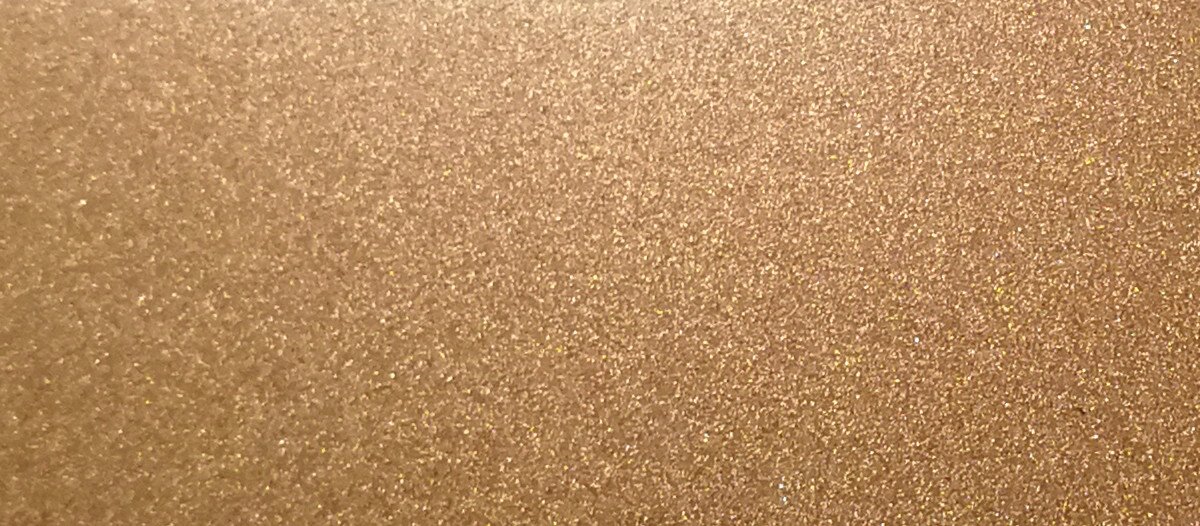

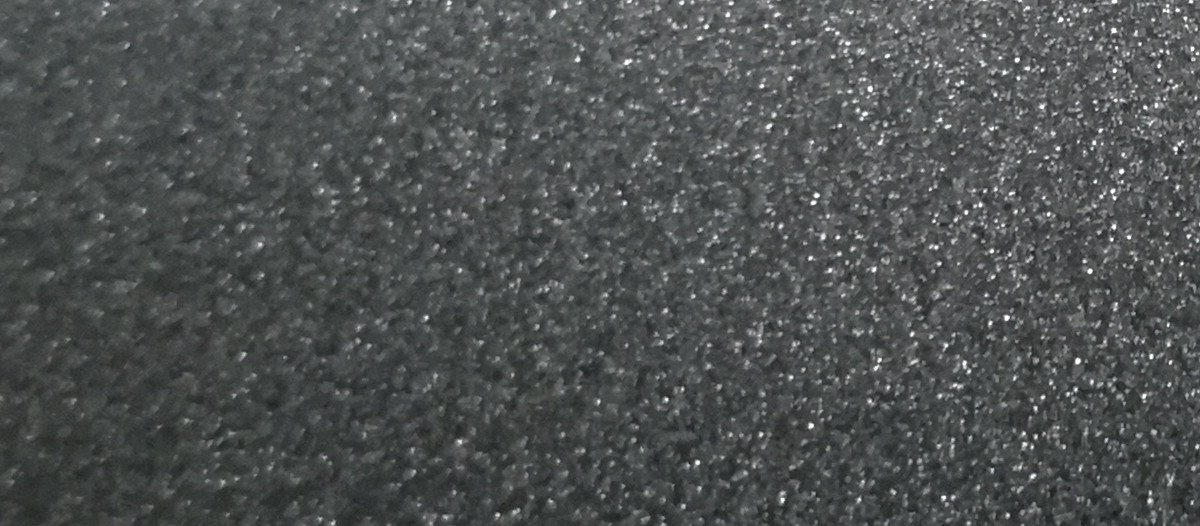

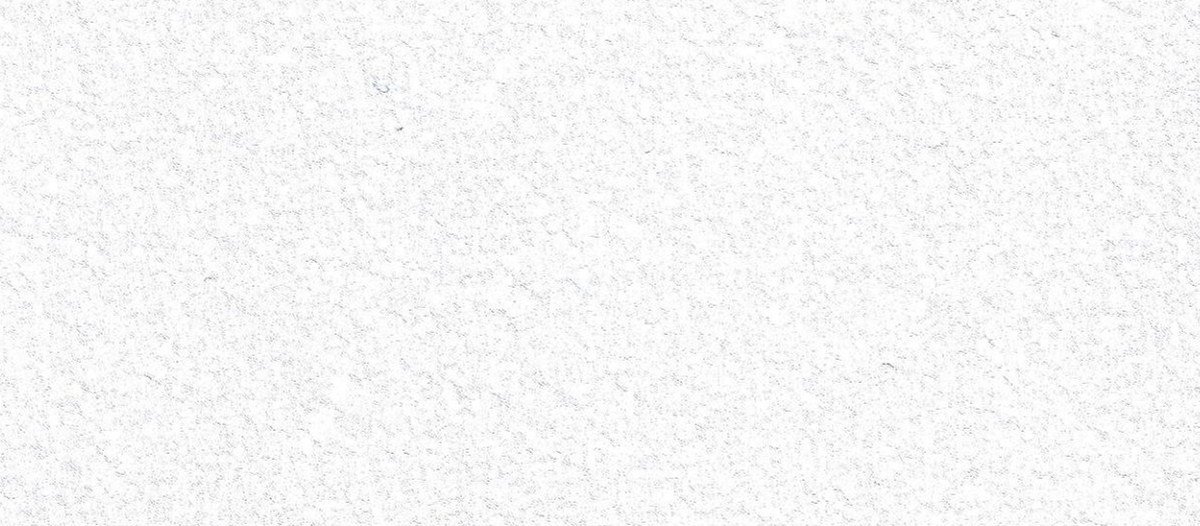

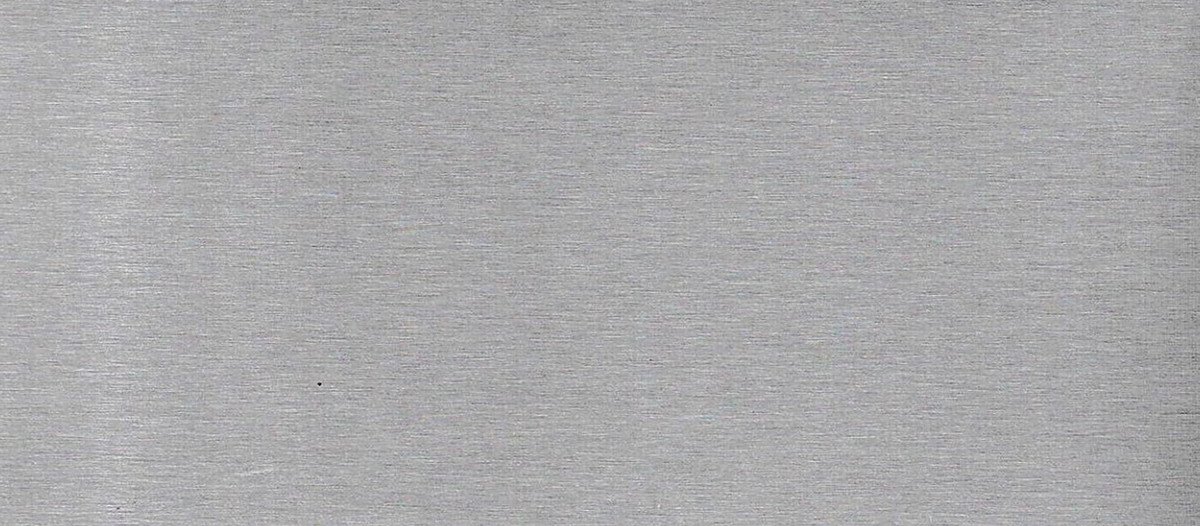

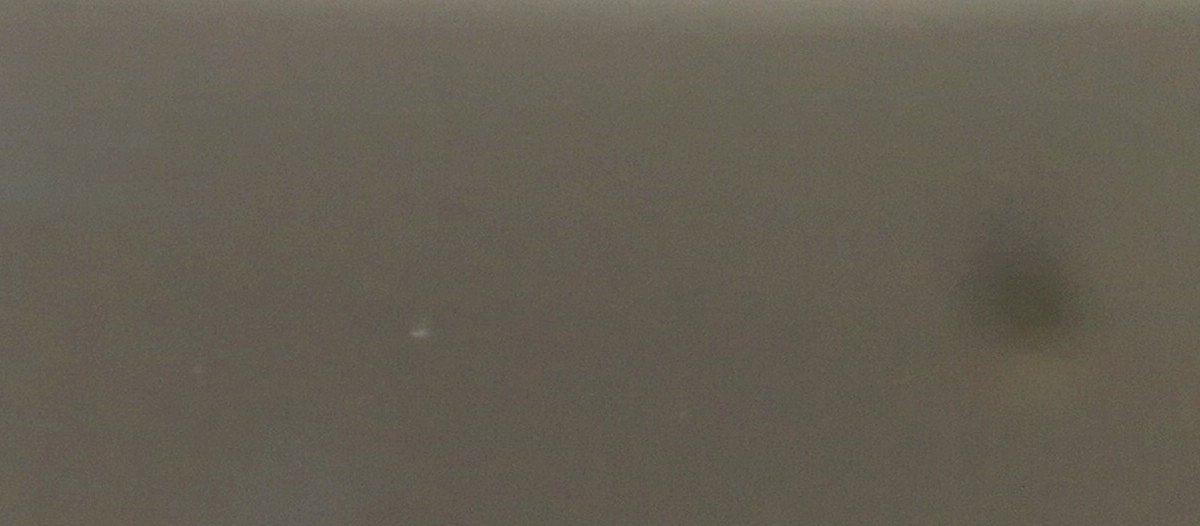

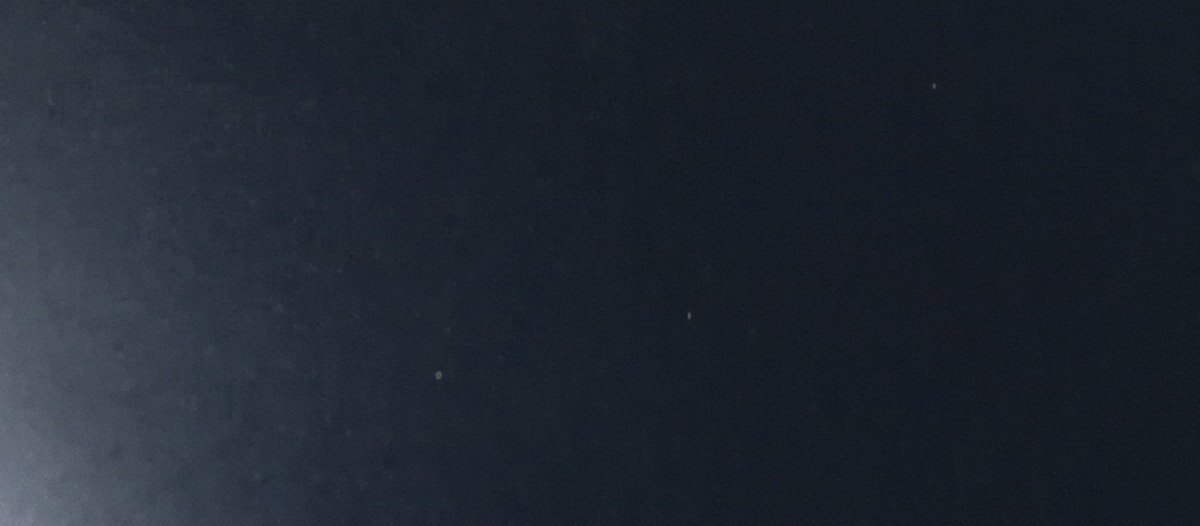

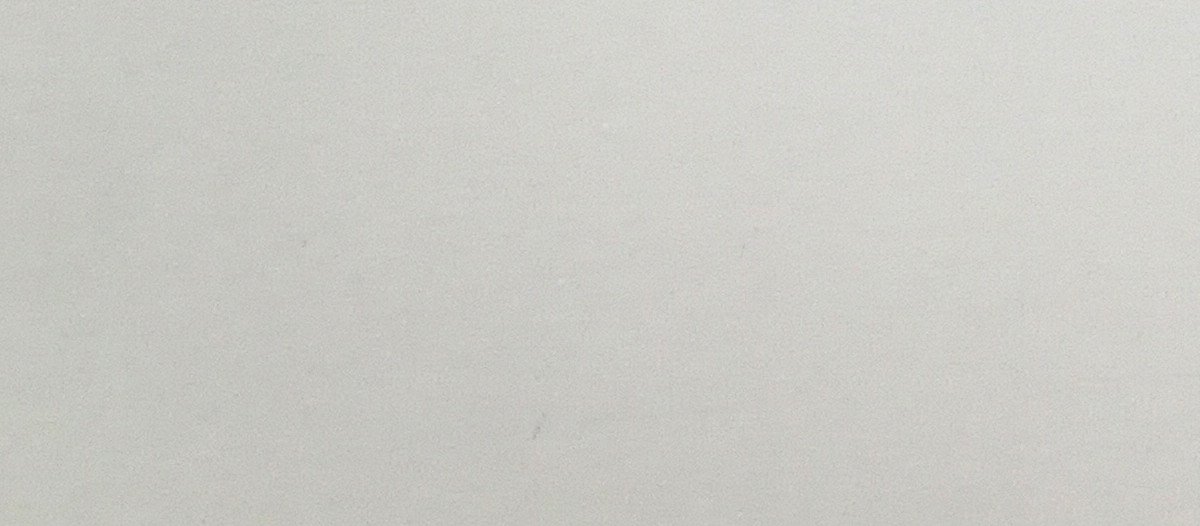

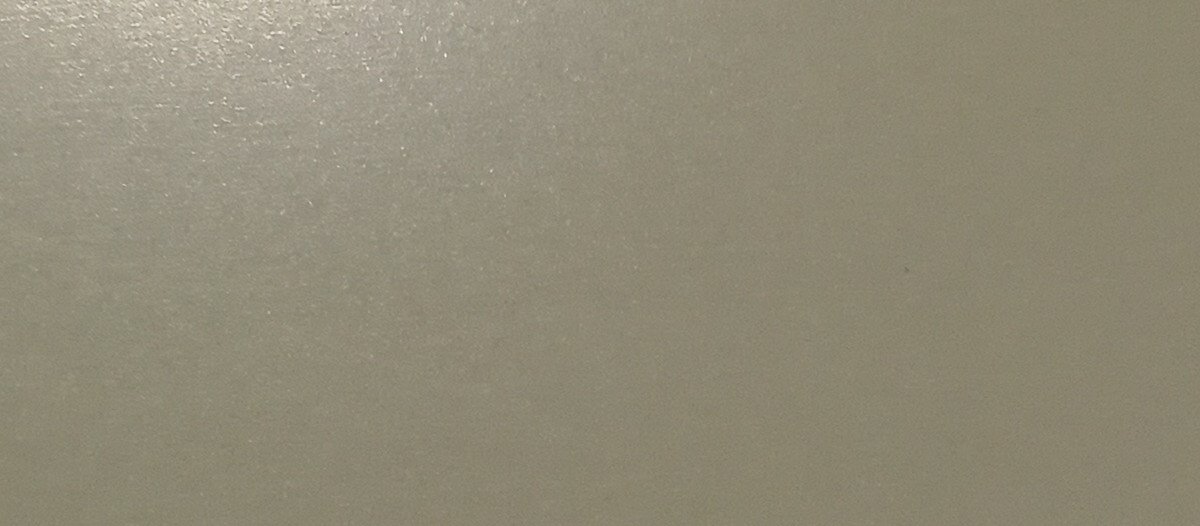

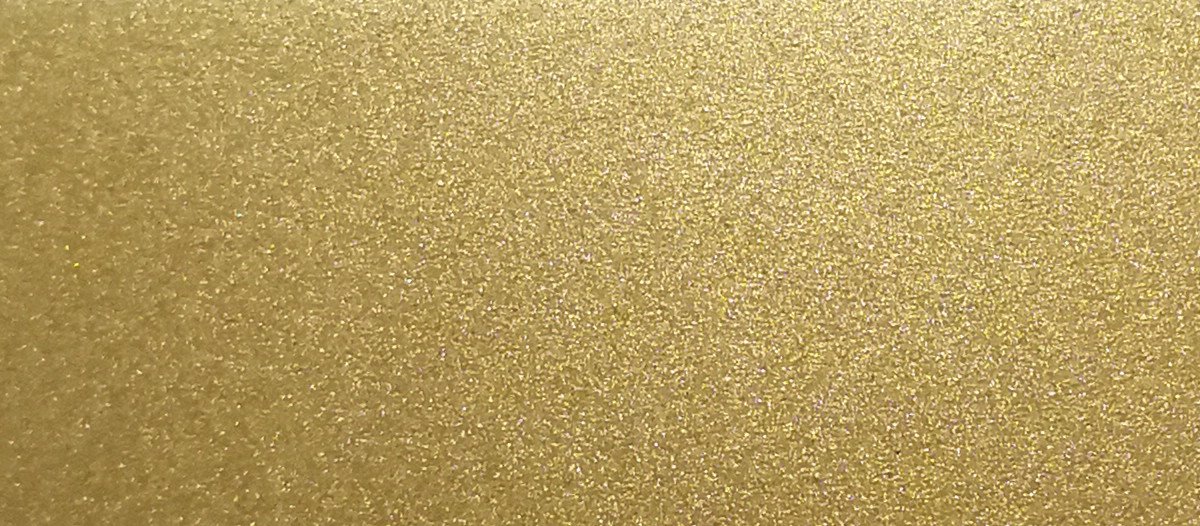

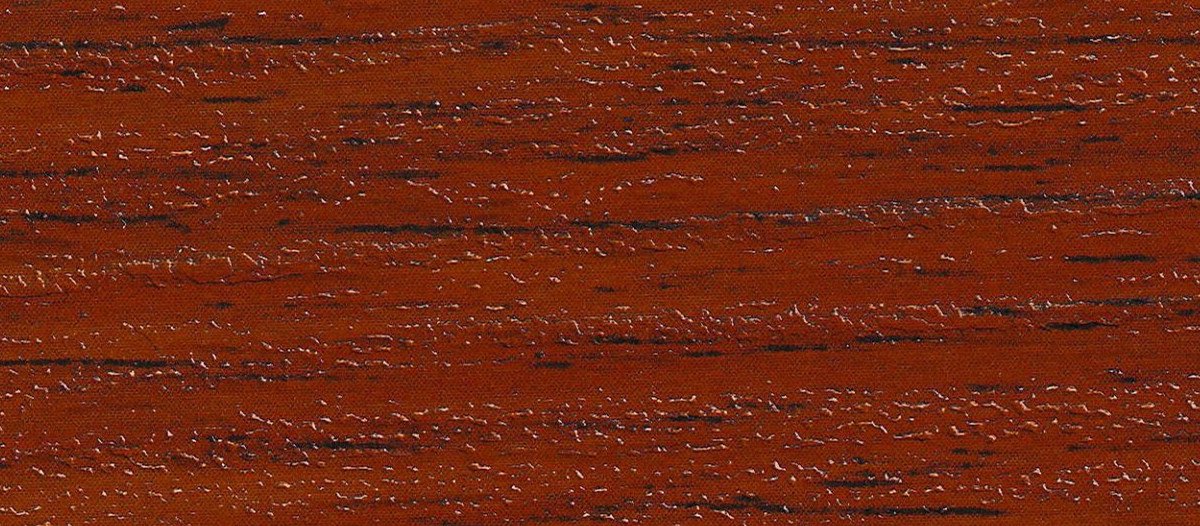

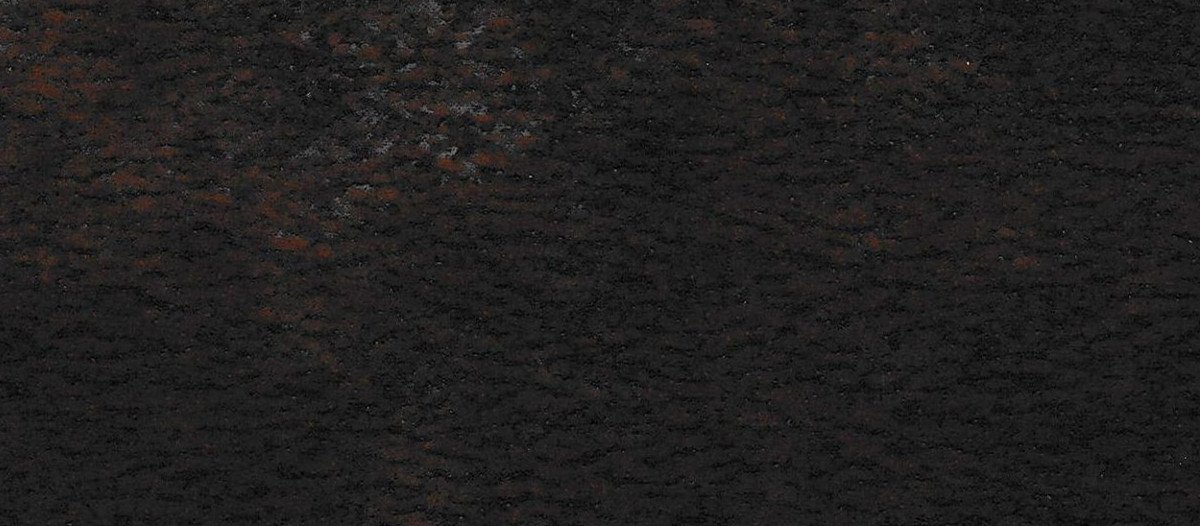

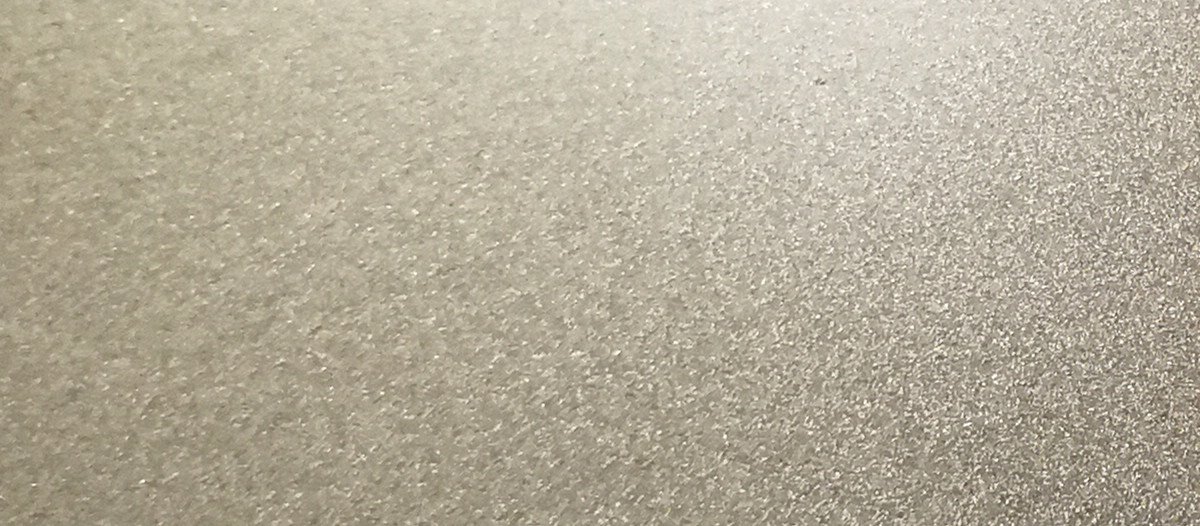

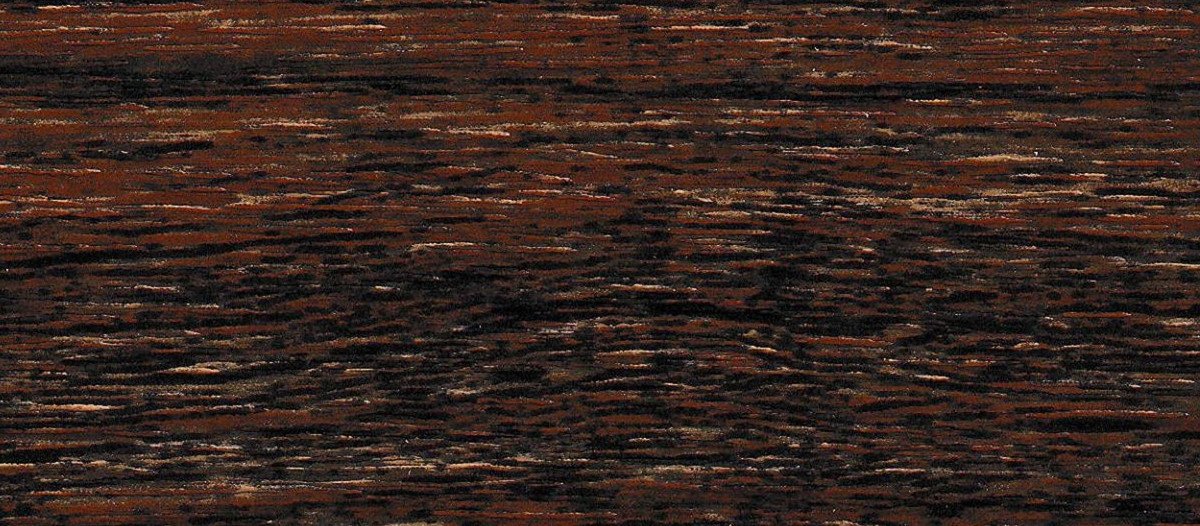

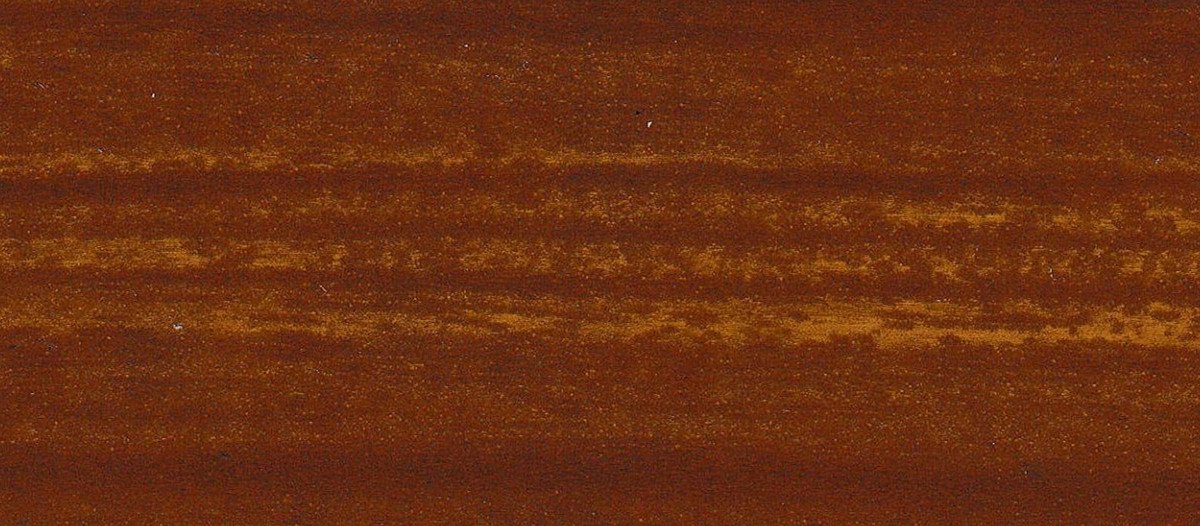

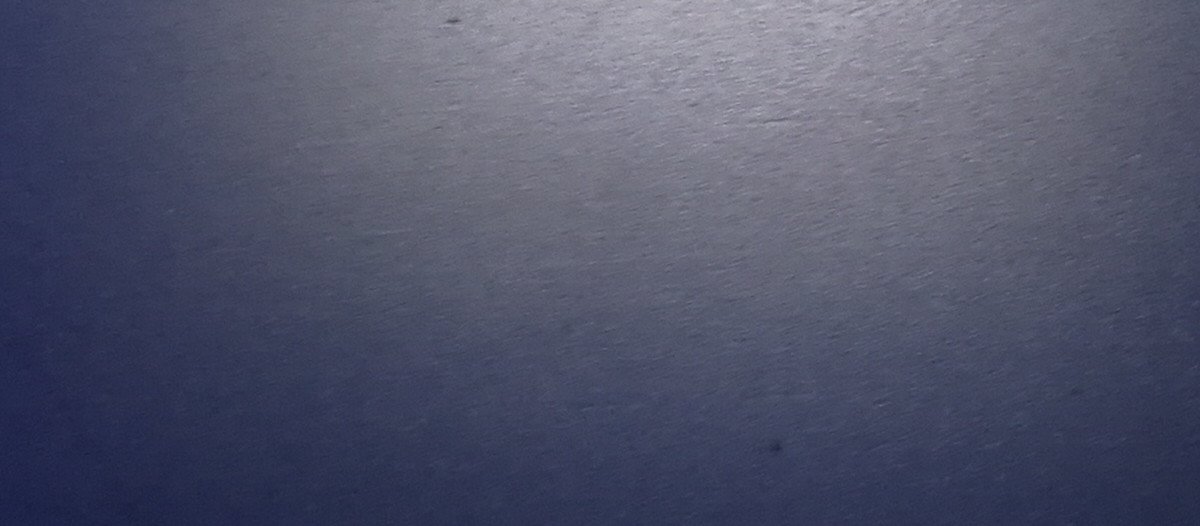

Choose the finish, we will match it
We can provide Alucowest panels in virtually any colour imaginable, and combine custom colours to our clients' specifications.
Screen colours are indicative only. Monitors and lighting both shift how a finish reads — always confirm against a physical sample before specifying.

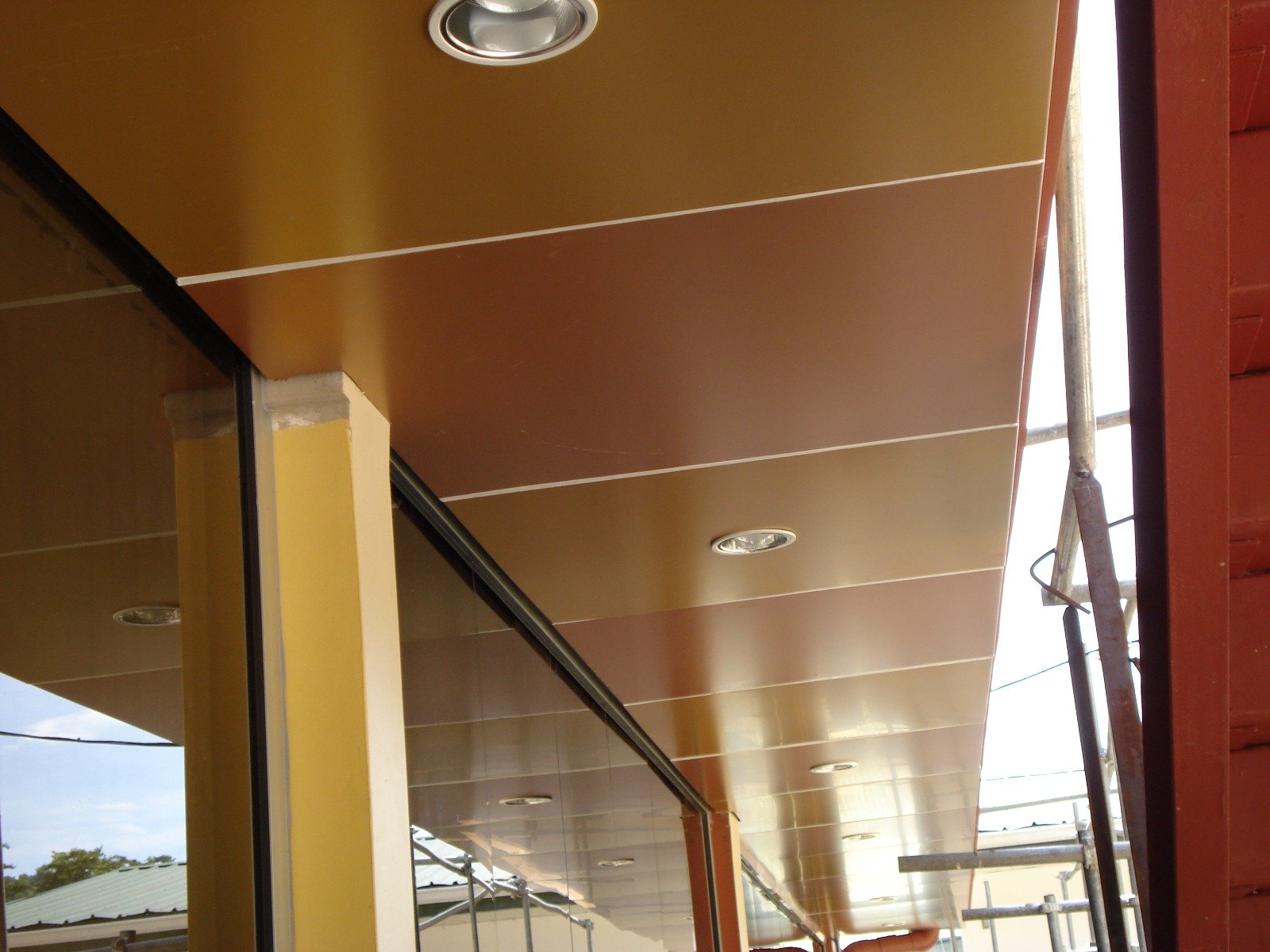

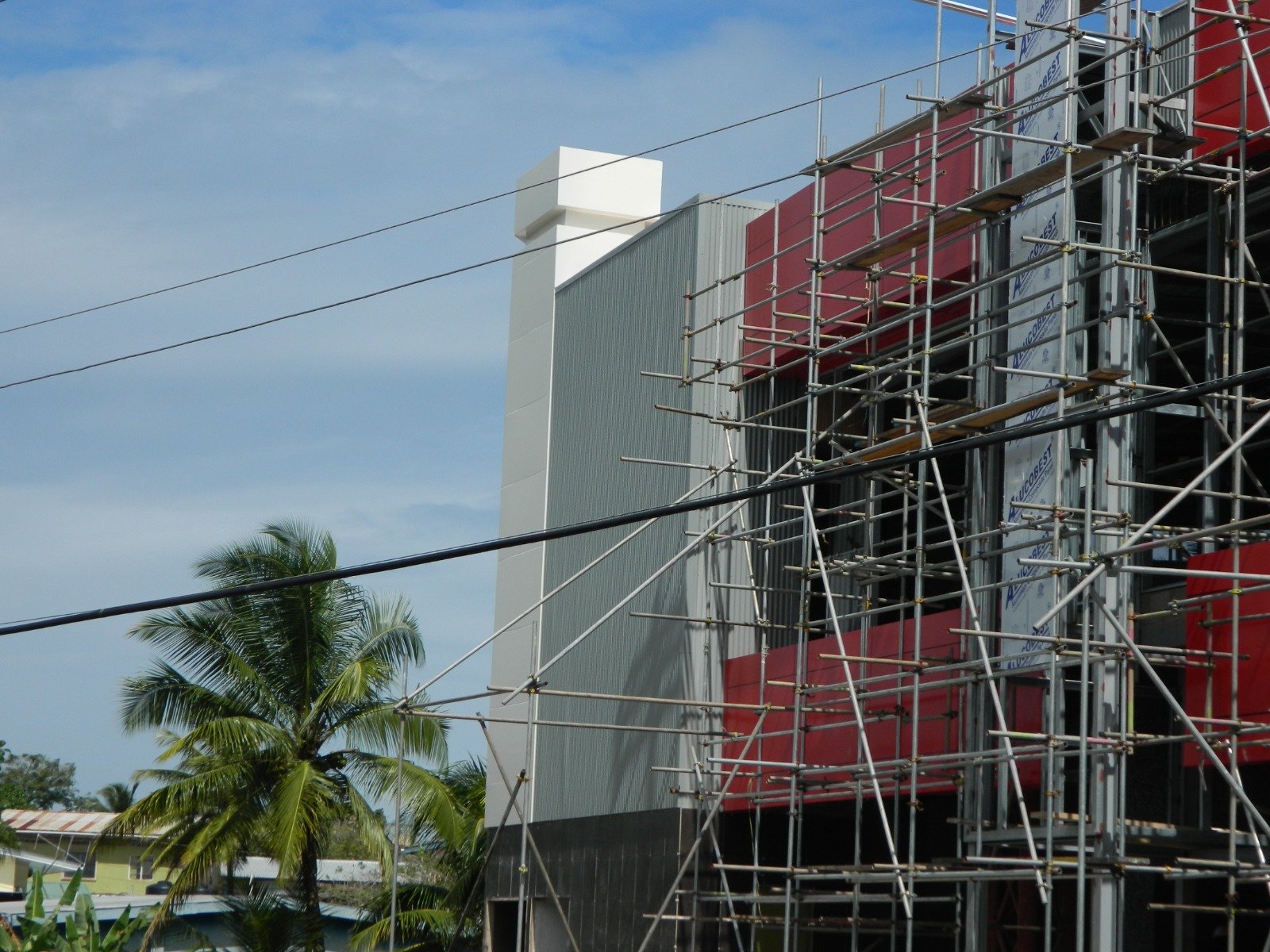

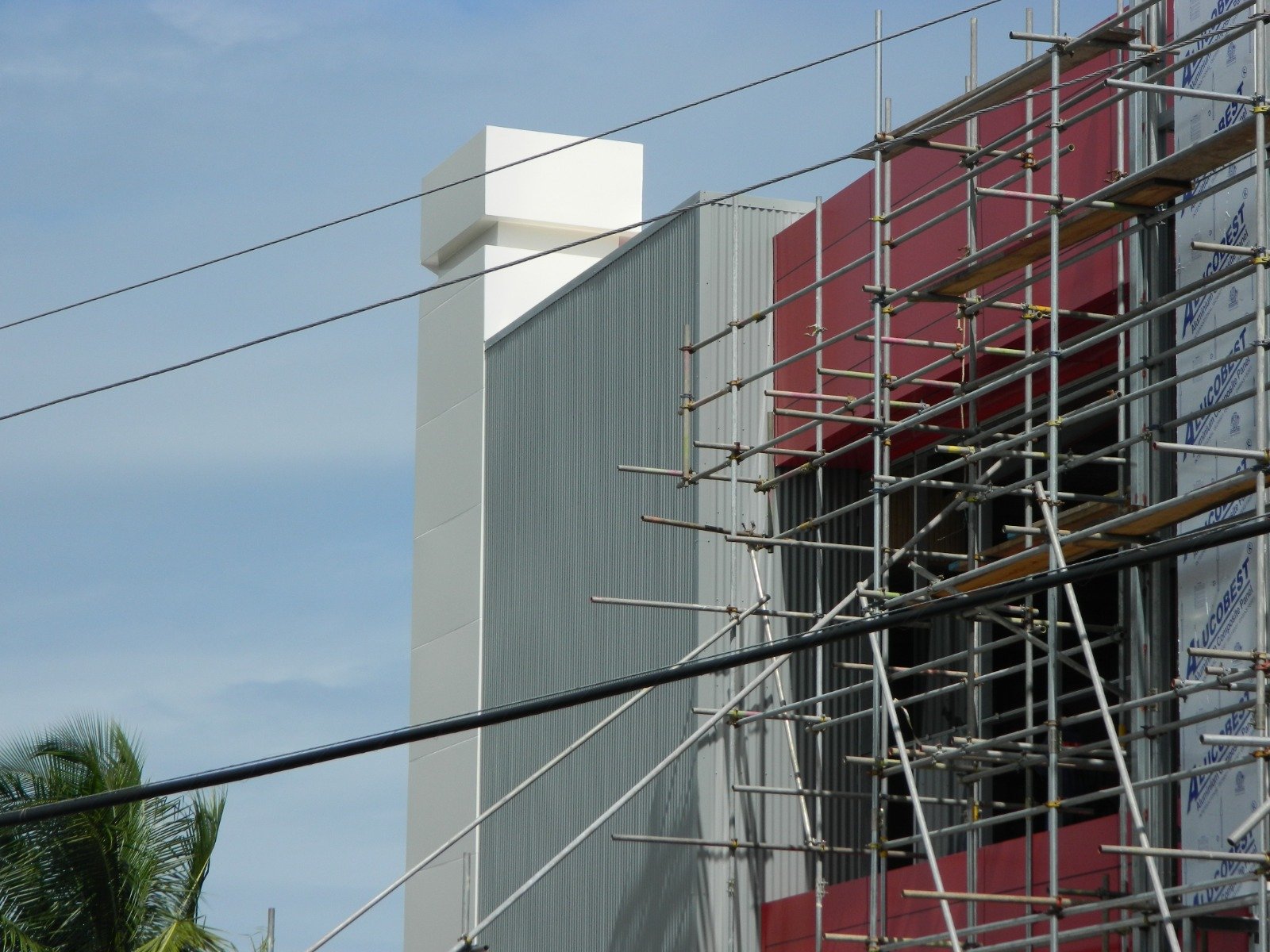

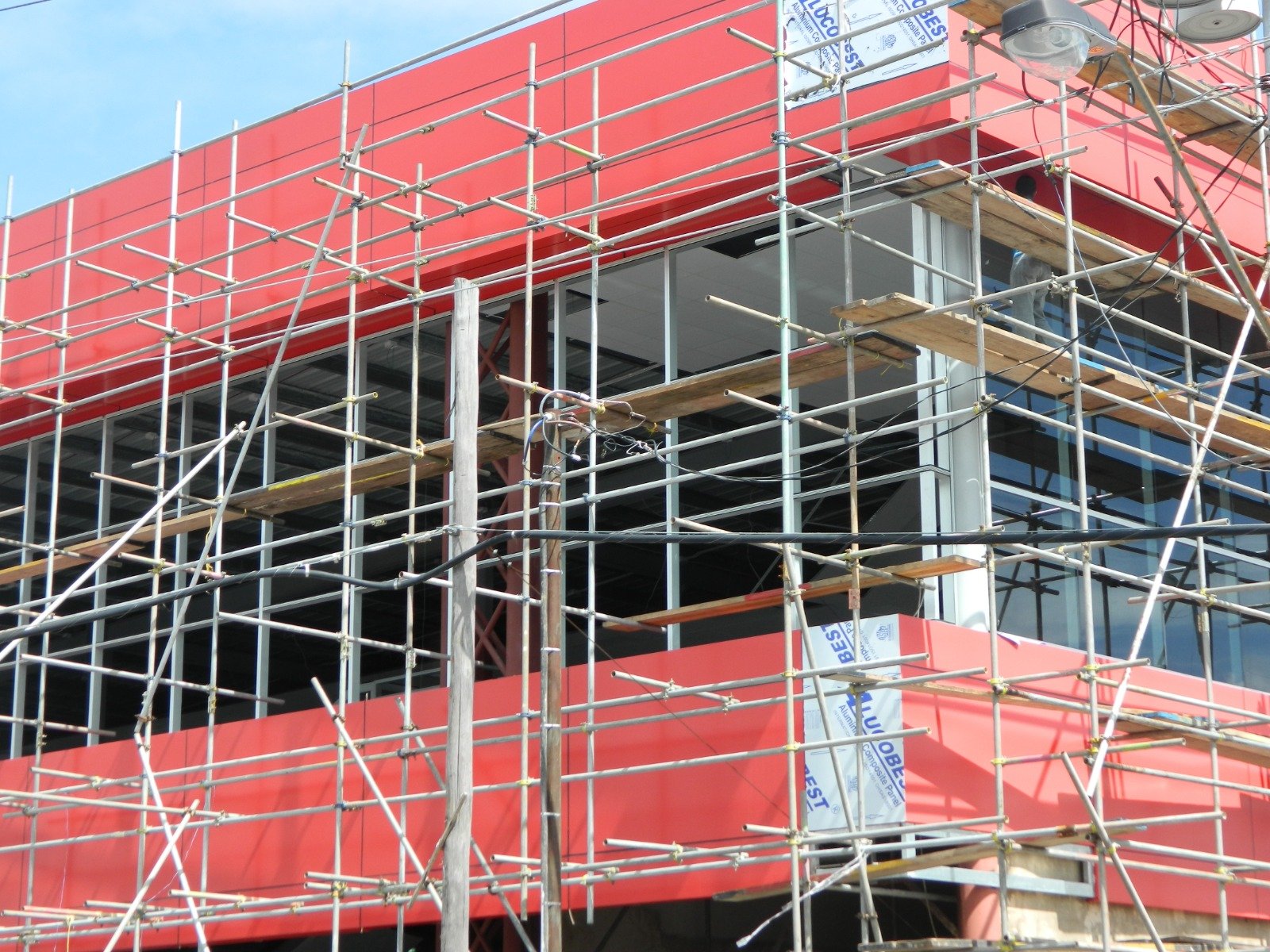

The same finishes, on a building
Proven across twelve exterior applications
We have an exclusive range of products to satisfy client needs and fulfil even the most demanding applications.
- Hotels
- Column covers
- Parapet walls
- Beam wraps
- Wall curtains
- Roof edgings
- Cladding
- Gas stations
- Façades
- Billboards
- Airports
- Signage

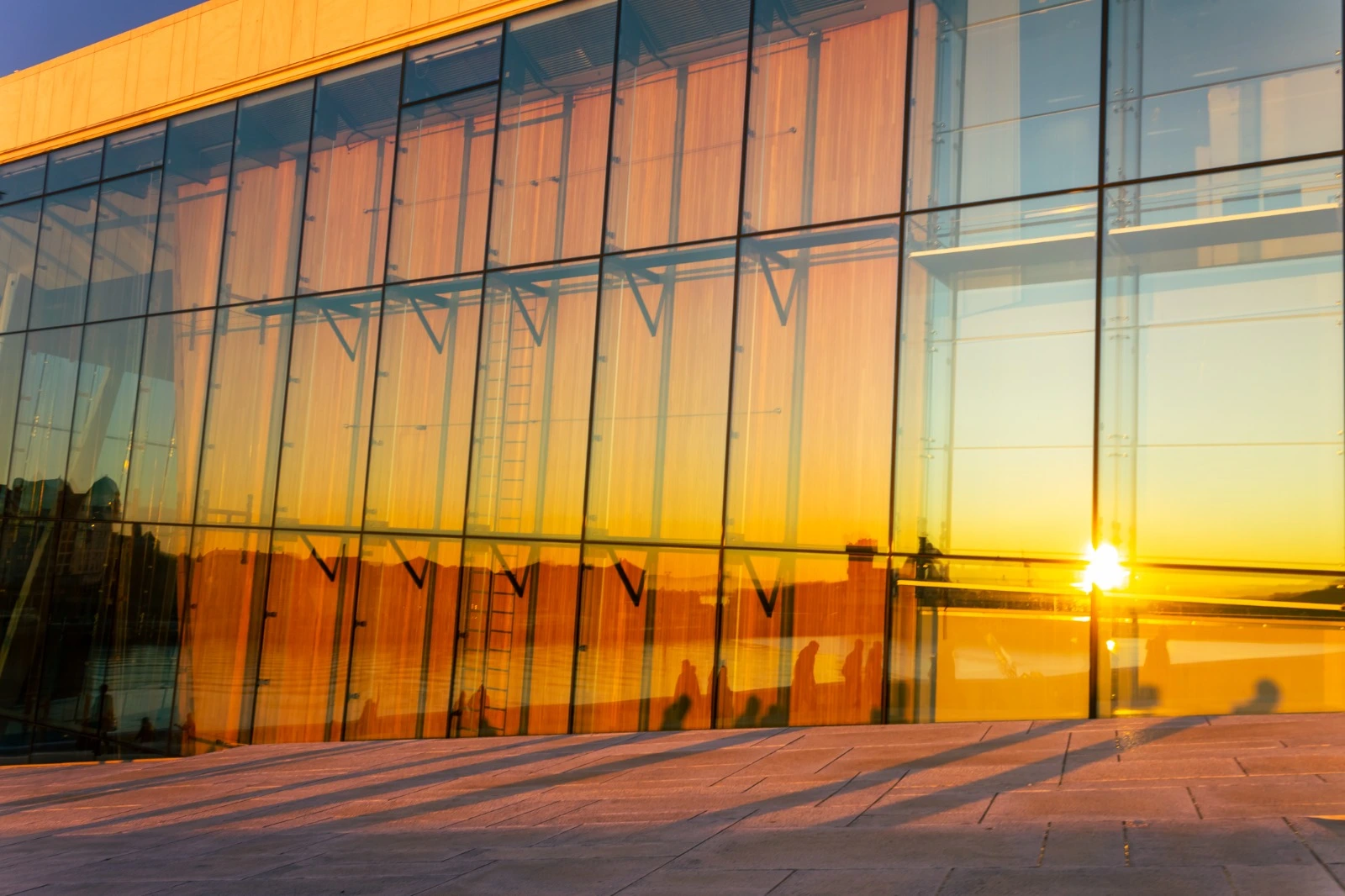

Glass supply and installation
Aside from our panel range, we also do glass supply and installation. We deal with and handle all glass works, and we fabricate and professionally install aluminium and glass products.
- Glass supply and installation
- Curtain walls
- Shop fronts
- Fabrication and basic installations
Warranty and price, both guaranteed
15 year factory warranty
Every panel is backed by the factory for fifteen years. When it comes to building supplies, ACP is a superior choice, and we stand behind it.
Low price guarantee
As one of the leading suppliers of quality ACM products, we hold the most extensive inventory in the industry and pass that efficiency on to you.
Need a specification for your project?
Tell us the application and the area, and we will come back with the right panel and a price.
